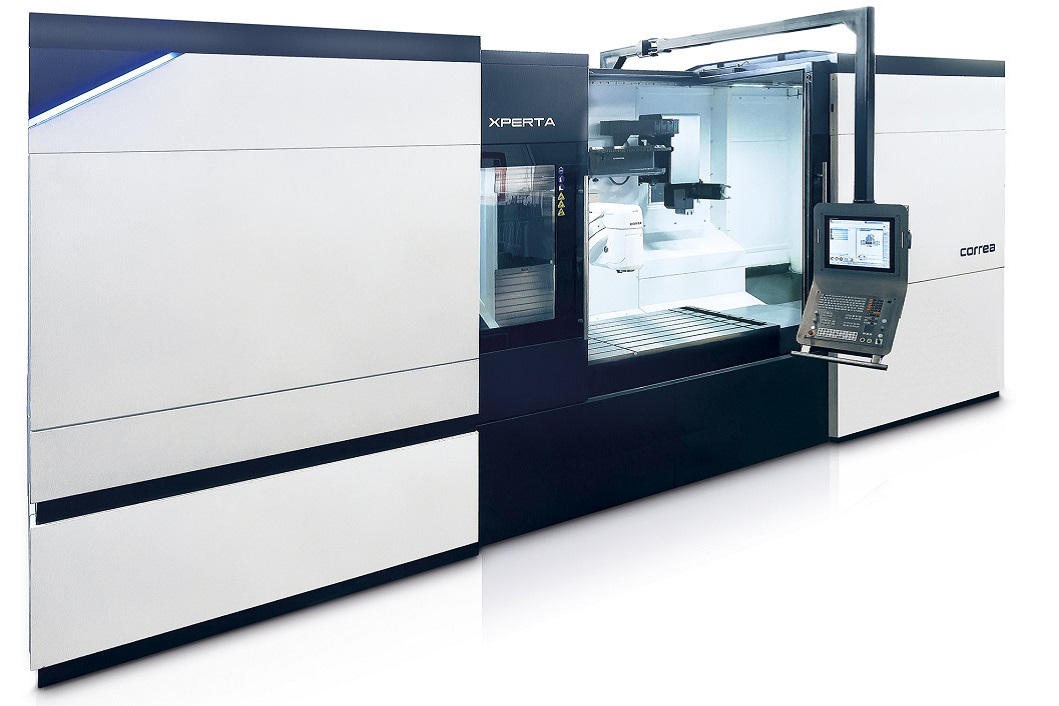

XPERTA PIT

  • Multi-Function Operation

Technical specifications

 20253545
Table
Surface mm 2.300 x 1.000 2.800 x 1.000 3.800 x 1.000 4.800 x 1.000
Maximum load on the table kg 4.500 6.500 8.500 10.500
Turning table Ø mm 1,000 1,000 1,000 10,00
Turning table speed rpm 250 250 250 250
Traverses
Longitudinal X mm 2.000 2.500 3.500 4.500
Cross Y mm 1.000
Vertical Z mm 1.000
Feeds
Maximum X m/min 25
Y m/min 25
Z m/min 25
Spindle specifications
Taper   HSK-100 T
Programmable speed rpm 4.000 / 6.000
Maximum power kW 24
Maximum torque Nm 840
Weight
Machine weight kg 15.200 16.400 18.600 22.000

Heads

UAD Technology

Universal and orthogonal indexing milling heads unique in the market. Patented technology allowing rotation every 0,02º.

5 axes Technology.

2 axes contouring head "Twist" type with built in electrospindle or spindle geared transmission.
