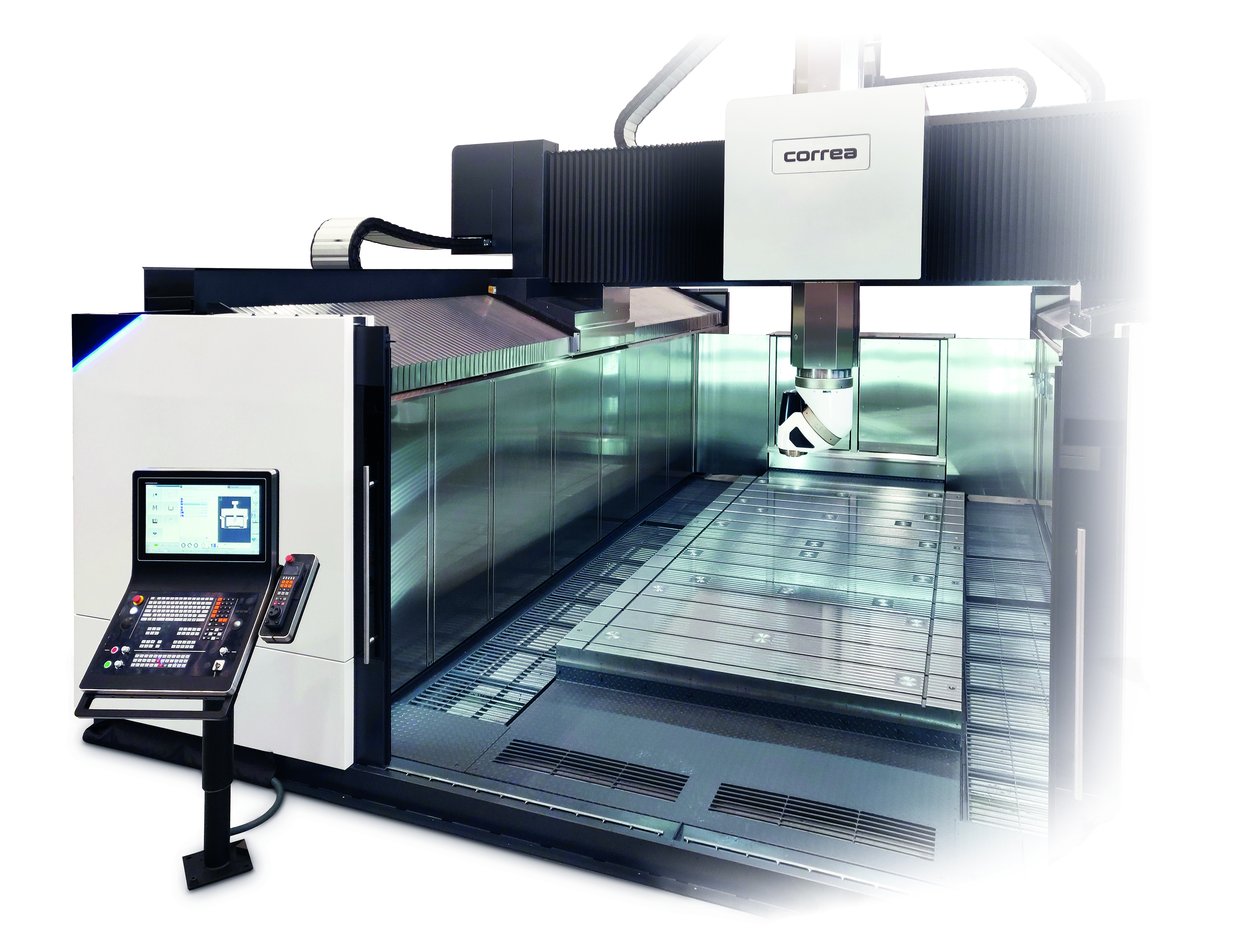

Correa ORIX T

  • Multi-Function Operation

Technical specifications

Turning table
Surface Ø mm 2,000 - 3,000
Maximum load on the tablet Tn 10 - 50
Maximum load on the table rpm 120 - 150
Traverses
Longitudinal X mm 3.500 - 24.500
Cross Y mm 3.250 4.250 5.250
Vertical Y mm 1.250 - 1.500 - 2.000
Working capacity
Distance between columns mm 4.150 5.150 6.150
Feeds
Maximum X m/min 30
Y m/min 30
Z m/min 30
Spindle specifications
Taper   ISO-50 / HSK-63 / HSK-100
Programmable speed rpm 6.000 / 24.000 / 12.000
Maximum power kW 52 / 35 / 35
Maximum torque Nm 1.375 / 60 / 120

Heads

UAD Technology

Universal and orthogonal indexing milling heads unique in the market. Patented technology allowing rotation every 0,02º.

5 axes Technology.

2 axes contouring head "Twist" type with built in electrospindle or spindle geared transmission.
