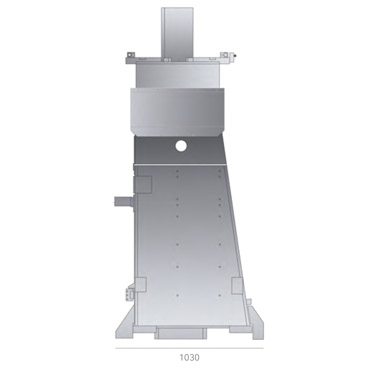

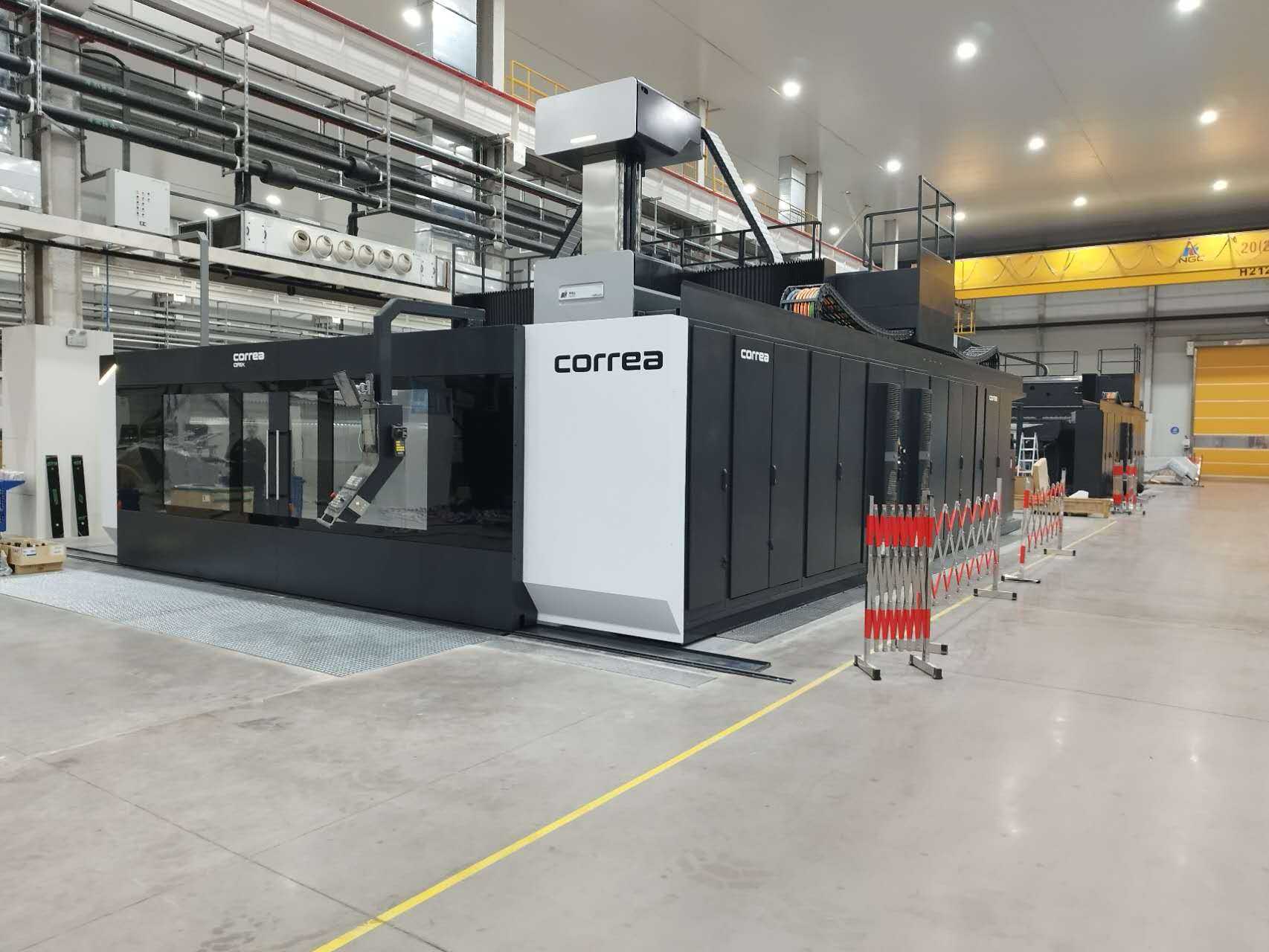

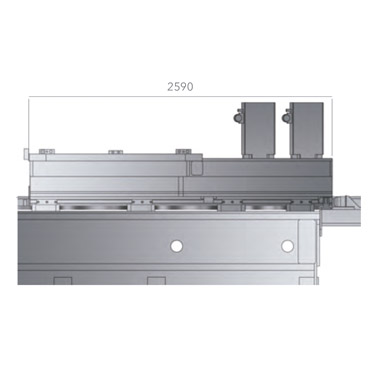

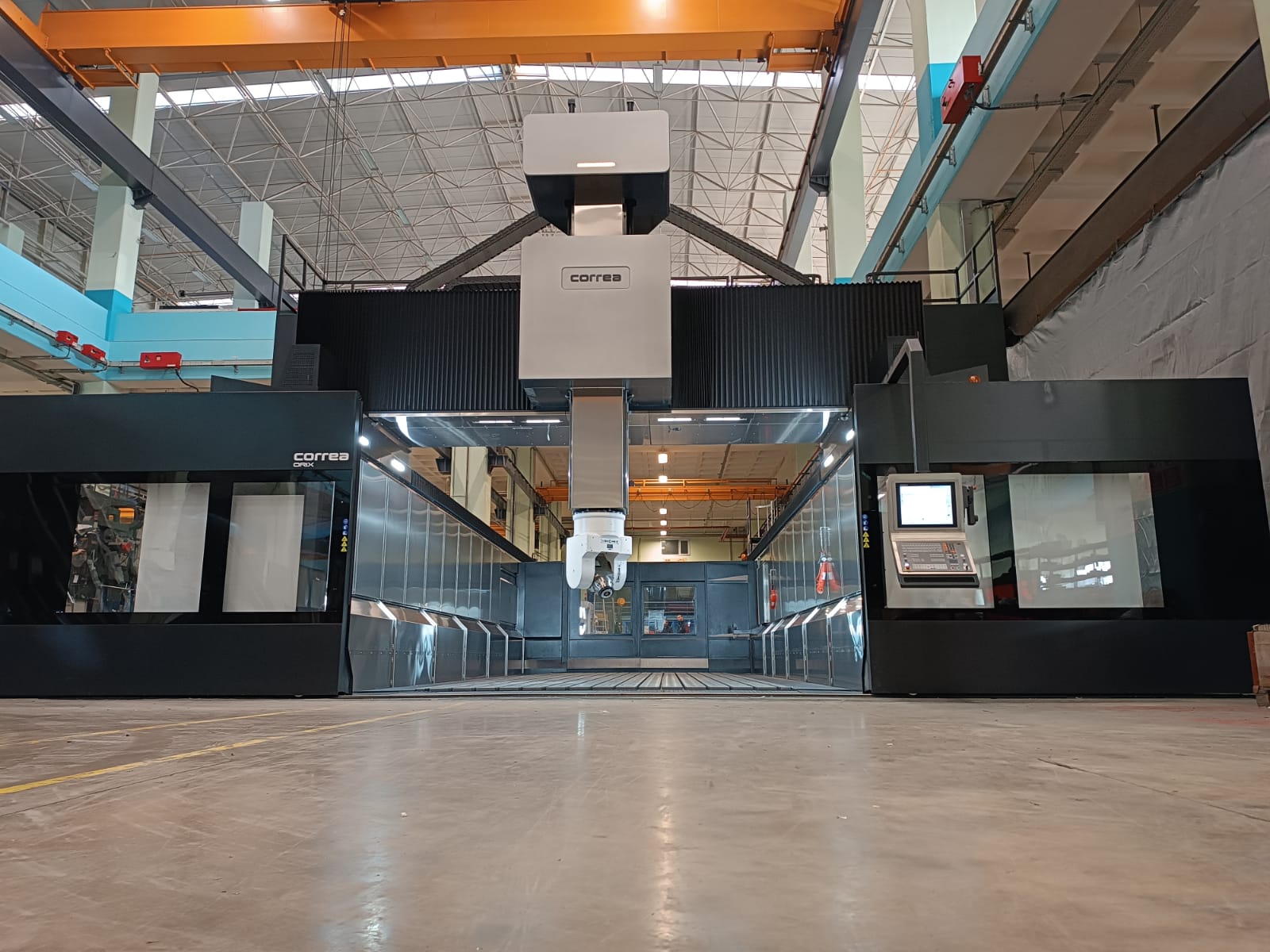

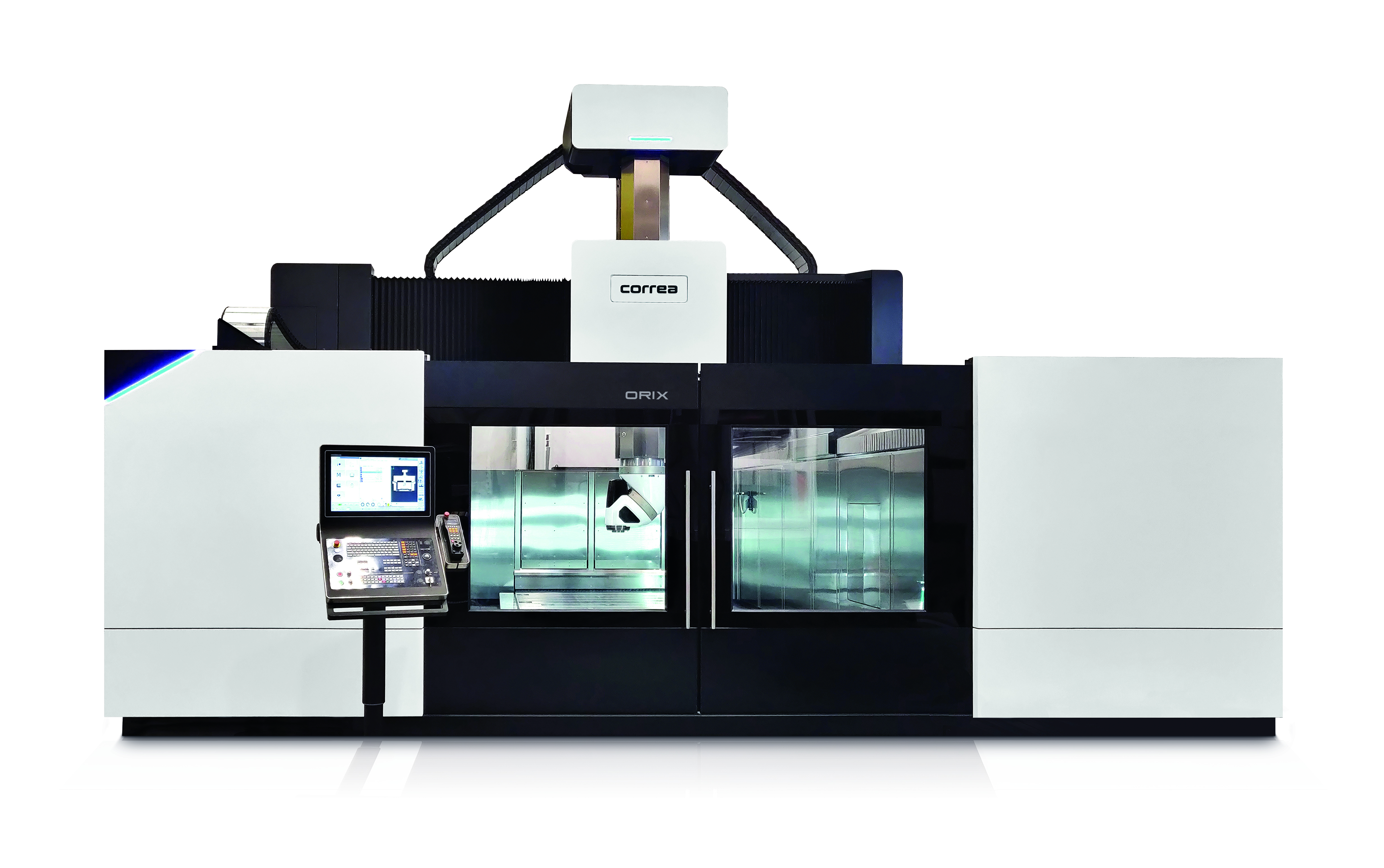

Technical specifications
Table | |||||||
---|---|---|---|---|---|---|---|
Surface | mm | 4.000 - 25.000 X 3.000 -4.500 | |||||
Maximum load on the table | Kg / m2 | 10.000 / 15.000 | |||||
Traverses | |||||||
Longitudinal | X mm | 3.500 - 24.500 | |||||
Cross | Y mm | 3.250 | 4.250 | 5.250 | |||
Vertical | Y mm | 1.250 - 1.500 - 2.000 | |||||
Working capacity | |||||||
Distance between columns | mm | 4.150 | 5.150 | 6.150 | |||
Feeds | |||||||
Maximum | X m/min | 30 | |||||
Y m/min | 30 | ||||||
Z m/min | 30 | ||||||
Spindle specifications | |||||||
Taper | ISO-50 / HSK-63 / HSK-100 | ||||||
Programmable speed | rpm | 6.000 / 24.000 / 12.000 | |||||
Maximum power | kW | 52 / 35 / 35 | |||||
Maximum torque | Nm | 1.375 / 60 / 120 |
Heads
UAD Technology
Universal and orthogonal indexing milling heads unique in the market. Patented technology allowing rotation every 0,02º.
5 axes Technology.
2 axes contouring head "Twist" type with built in electrospindle or spindle geared transmission.
Are you interested in our heads?

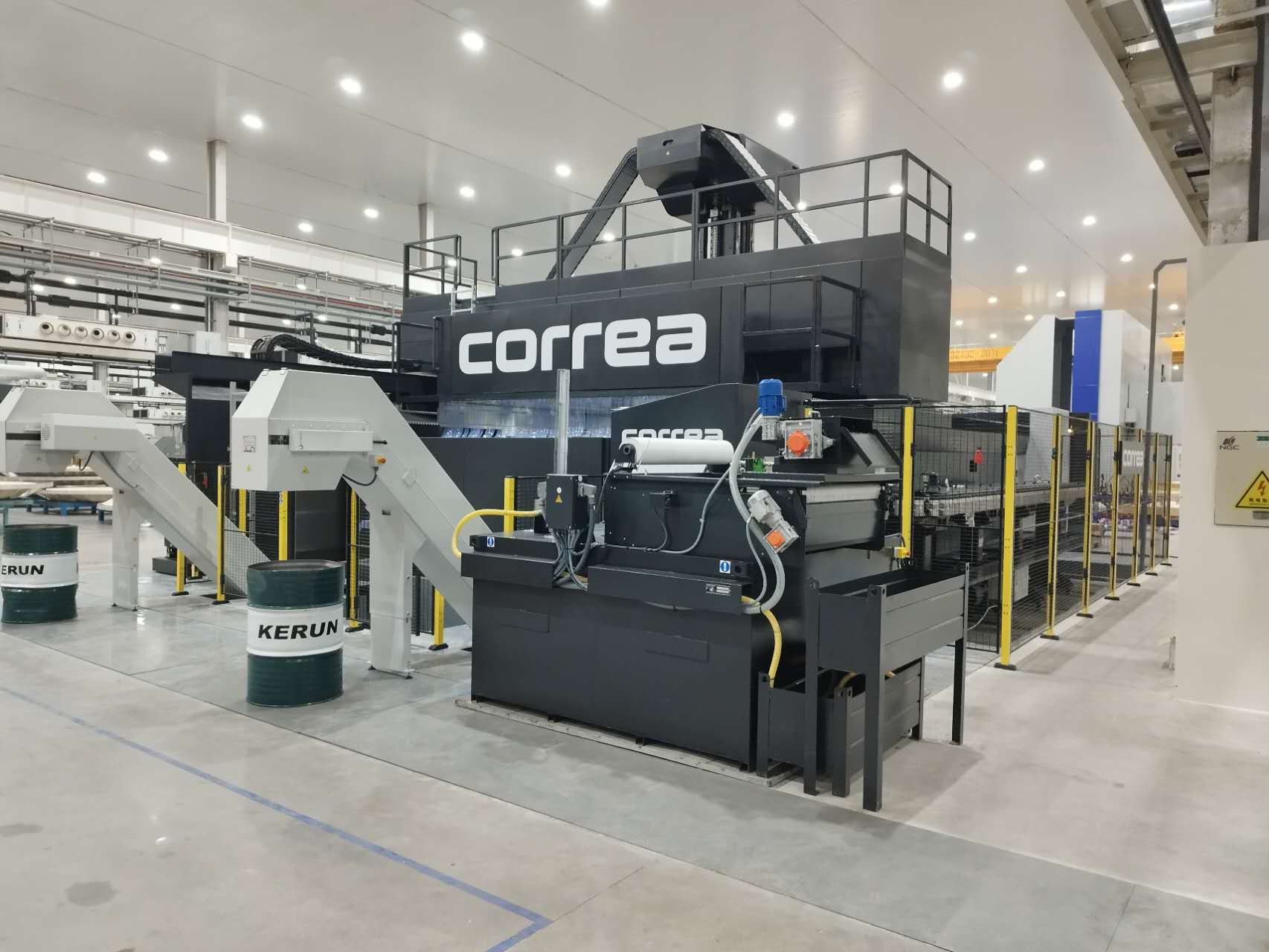

Standard and optional equipment
Standard equipment
- Five-axes twist drill head equipped with electrospindle
- Numerical control Heidenhain or Siemens (Operate HMI)
- Portable handwheel
- Air-conditioned electrical cabinet
- Linear guides in the X, Y and Z axes
- Lamp in the working area
- Hydraulic and cooling group
- Linear scales in all axes
- External Coolant with adjustable nozzles
- Internal and external air flow
- Guarding
- Tele-service
- VIXION 4.0
Optional equipment
- Other heads
- Automatic head-changer
- Probes of measurement, tools and parts
- Automatic charger for 30, 40, 60, 120 tools
- Pick up station for 6, 8, 12 tools
- Air/Coolant cleaning gun
- Self cleaning filter
- Rotary tables
- Chip conveyors
- Different enclosures according to user’s needs (only in some models)
- Coolant through spindle 17, 36, 70 bar
- Zero Point Clamping System integrated in the machine
