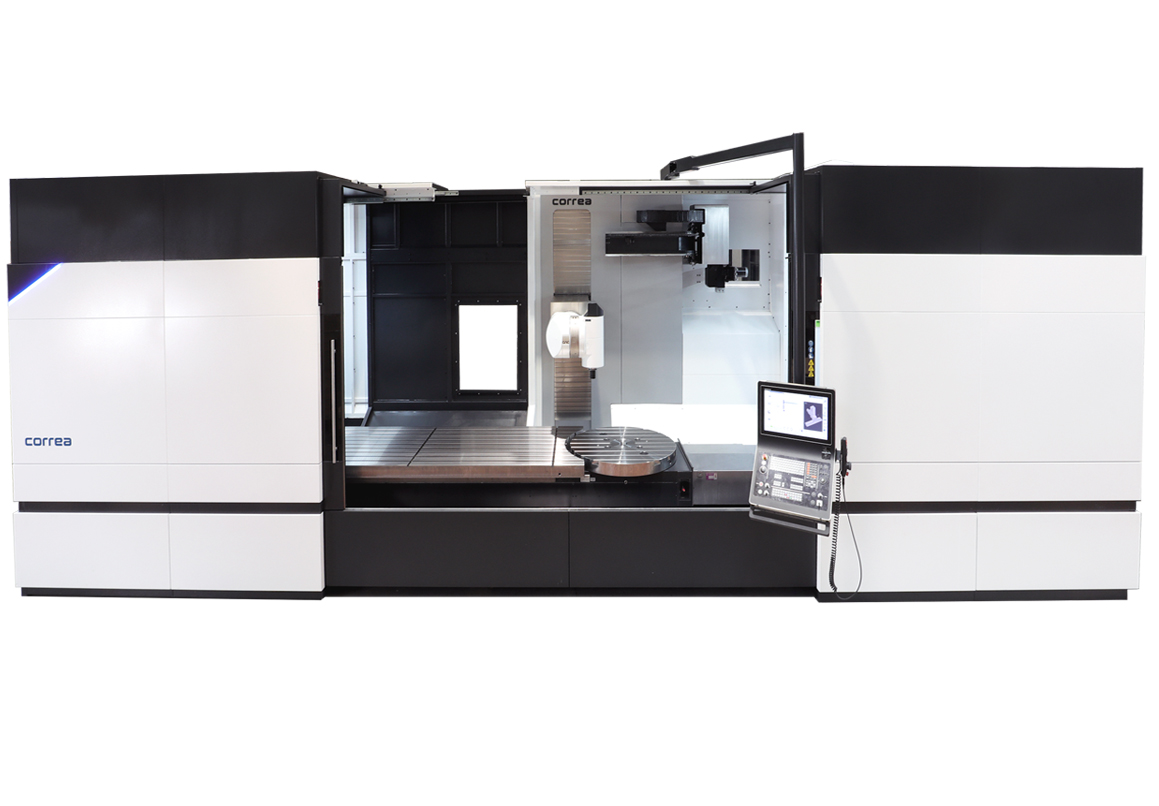

NORMA PIT

  • Multi-Function Operation

Technical specifications



 20253545
Table
Surface mm 2.150 x 1.000/1.250 2.650 x 1.000/1.250 3.650 x 1.000/1.250 4.650 x 1.000/1.250
Maximum load on the table kg 4,500 6,500 8,500 10,500
Diameter Ø mm 1,000/1,250 1,000/1,250 1,000/1,250 1,000/1,250
Turning table speed rpm 250 250 250 250
Traverses
Longitudinal X mm 2,000 2,500 3,500 4,500
Cross Y mm 1,250 / 1,500
Vertical Z mm 1,500 / 2,000
Feeds
Maximum X m/min 30
Y m/min 30
Z m/min 30
Spindle specifications
Taper   HSK-100 T
Programmable speed rpm 6,000
Maximum power kW 24 - 33
Maximum torque Nm 840 - 990
Weight
Machine weight kg 17.800 19.000 21.200 24.000

Heads

UAD Technology

Universal and orthogonal indexing milling heads unique in the market. Patented technology allowing rotation every 0,02º.

5 axes Technology.

2 axes contouring head "Twist" type with built in electrospindle or spindle geared transmission.

Are you interested in our heads?

About our heads

Standard and optional equipment

Standard equipment

  • Automatic Universal Head
  • Numerical control Heidenhain or Siemens
  • Portable handwheel
  • Air-conditioned electrical cabinet
  • Linear guides in the X, Y and Z axes
  • Lamp in the working area
  • Gearbox
  • Hydraulic group
  • Linear scales in all axes
  • External Coolant with adjustable nozzles in the head
  • Perimeter fence
  • Direct Tele-service
  • VIXION 4.0
