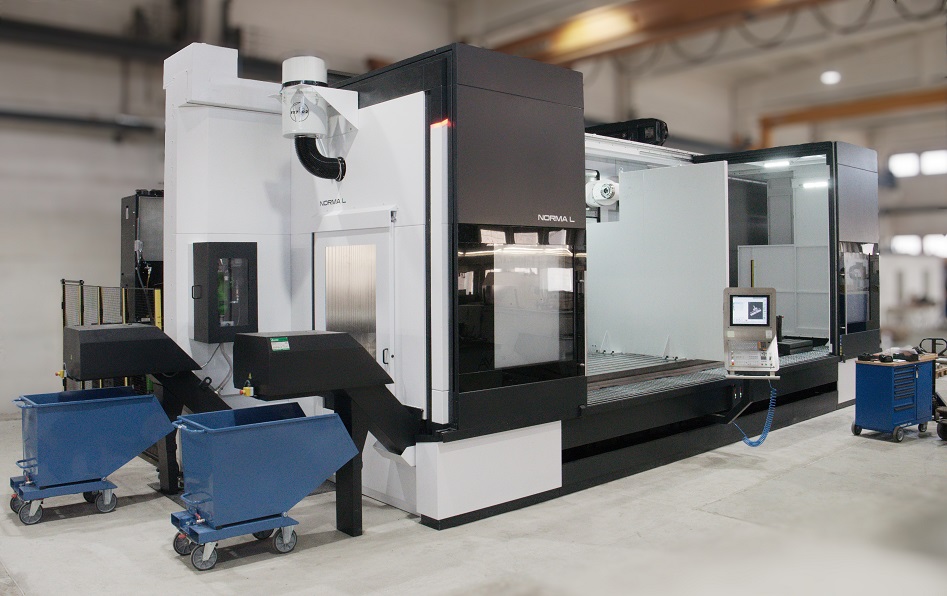

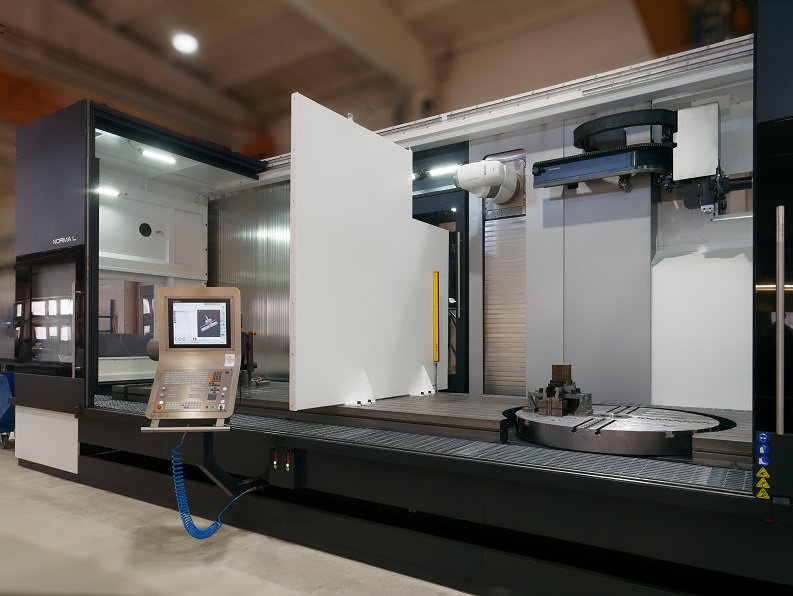

NORMA L PIT

To see this video you must accept marketing cookies, it can be configured here
  • Multi-Function Operation

Technical specifications

 456080
Table
Surface mm 4.800 x 1.000/1.250 6.300 x 1.000/1.250 8.300 x 1.000/1.250
Maximum load on the table Kg 6.000

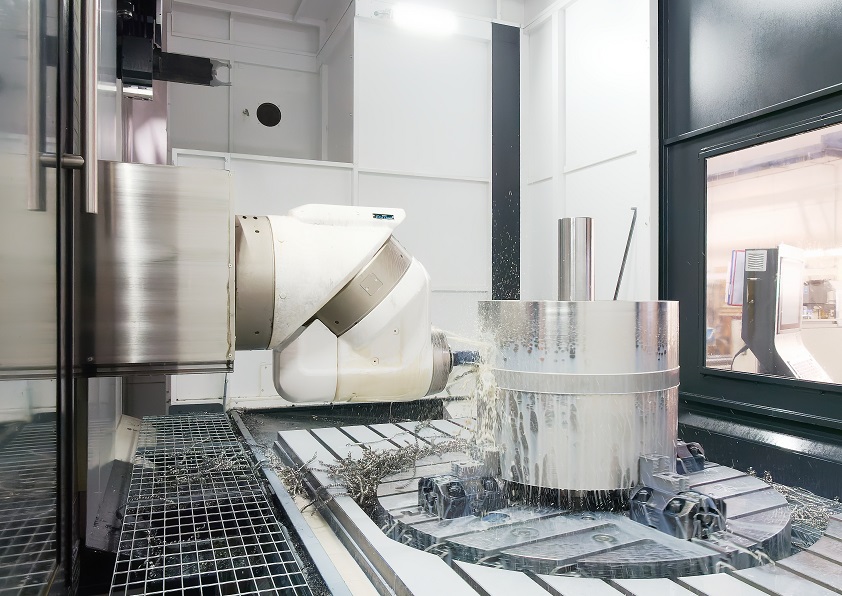

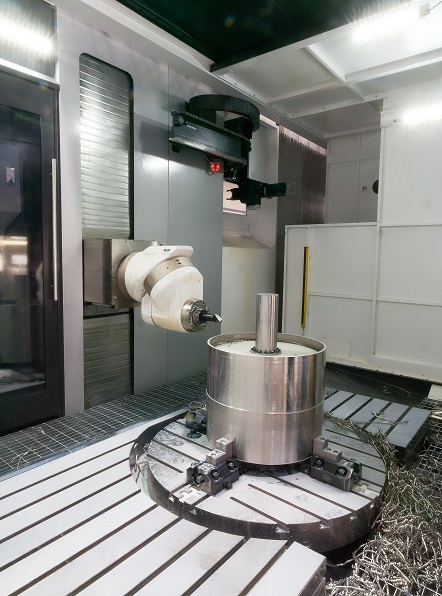

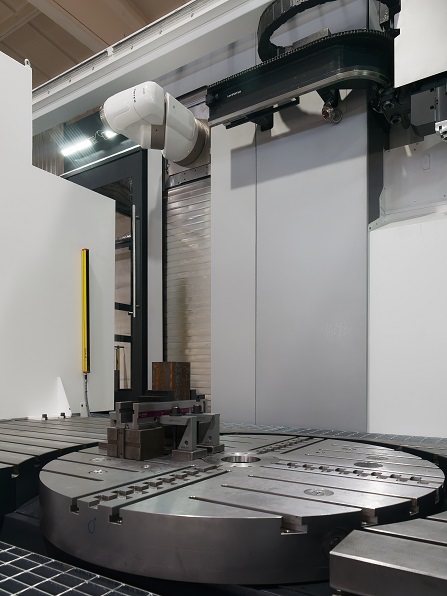

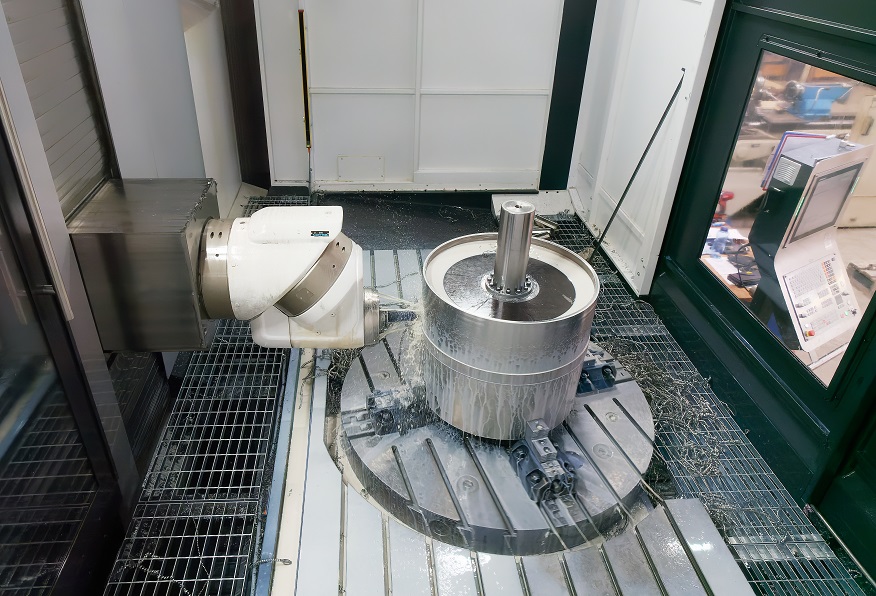

Turning table
Surface Ø mm 1,000 / 1,250 1,000 / 1,250 1,000 / 1,250
Maximum load on the table Kg 3.000
Speed rpm 250
Traverses
Longitudinal X mm 4,500 / 6,000 / 8,000
Cross Y mm 1,250 / 1,500
Vertical Z mm 1,500 / 2,000
Feeds
Maximum X m/min 30
Y m/min 30
Z m/min 30
Spindle specifications
Taper   HSK-100 T
Programmable speed rpm 6.000
Maximum power kW 24 / 33
Maximum torque Nm 840 / 990

Heads

UAD Technology

Universal and orthogonal indexing milling heads unique in the market. Patented technology allowing rotation every 0,02º.

5 axes Technology.

2 axes contouring head "Twist" type with built in electrospindle or spindle geared transmission.
