What makes the difference?
The FOX represents a new and innovative concept of bridge-type machine which combines traditional roughing capacity with the speed and precision of high performance machining. It includes a unique system which controls the temperature generated in the vertical axis of the machine.
-

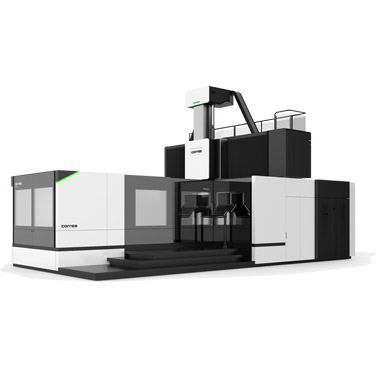

![Eco Design]()
![Eco Design]()
Eco Design
Stand-by function and Auto Switch off function, saving 20% of the total energy machine consumption.
-
![High Damping Capacity]()
![High Damping Capacity]()
High Damping Capacity
- Vertical axis with water-cooled friction slideway.
- Excellent damping capacity.
- Optimum performance with the ram in the lowest position.
-
![High Feed Rates]()
![High Feed Rates]()
High Feed Rates
30 m/min in X, Y and Z axes, thanks to its V-Shaped linear guide-ways in all axes.
-
![High Geometrical Precision]()
![High Geometrical Precision]()
High Geometrical Precision
- Big cross sections in the market.
- Roughing capacity.
- Machine geometry stability.

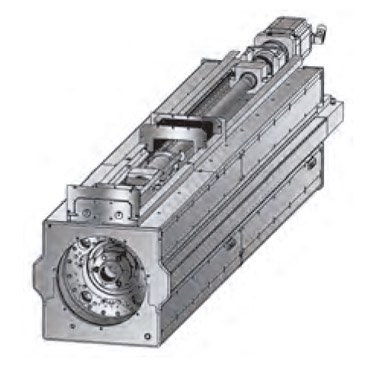

![High Geometrical Precision]()
High Geometrical Precision
- Big cross sections in the market.
- Roughing capacity.
- Machine geometry stability.
![High Geometrical Precision]()
High Geometrical Precision
- Big cross sections in the market.
- Roughing capacity.
- Machine geometry stability.
![High Geometrical Precision]()
High Geometrical Precision
- Big cross sections in the market.
- Roughing capacity.
- Machine geometry stability.
-

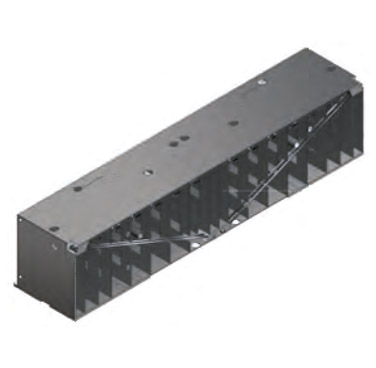

![Oversized Structural Elements]()
![Oversized Structural Elements]()
Oversized Structural Elements
- Big cross section bed.
- Roughing capacity.
- Machine geometry stability.

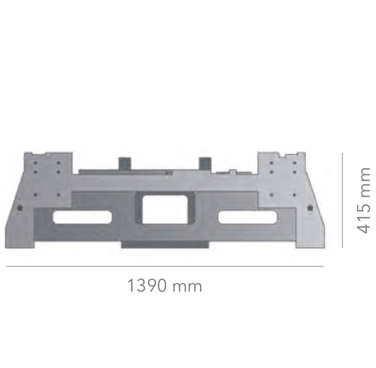

![Oversized Structural Elements]()
Oversized Structural Elements
Ram Cross Section: 540mm x 550mm.

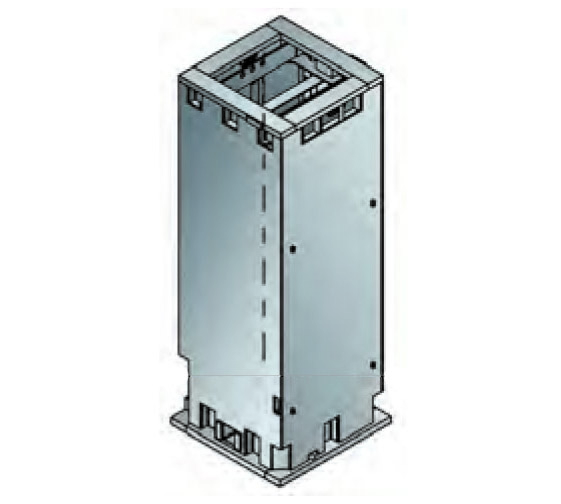

![Oversized Structural Elements]()
Oversized Structural Elements
Concrete filled columns for optimum damping.
Column Cross Section: 1100mm x 1100mm.
![Oversized Structural Elements]()
Oversized Structural Elements
Crossbeam Cross Section: 1030mm x 1305mm.
-
![Multi-Function Operation]()
![]()
Fox has the option of turning table integrated in X axis up to a diameter of 2500 mm.
Moreover, a detachable turning table can be installed on top of the table.
-

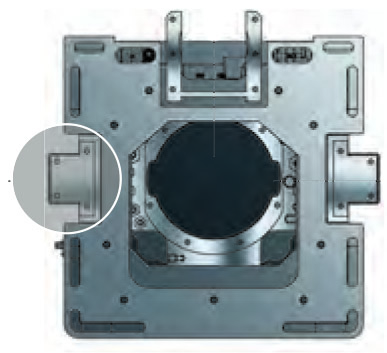

![Thermo Symmetrical Design]()
![Thermo Symmetrical Design]()
Thermo Symmetrical Design
- Totally symmetric design of vertical axis.
- Improved geometry of the machine.
- Geometry is more stable faced with temperature changes.
-
![Machine Dynamic Adjustment]()
![Machine Dynamic Adjustment]()
Machine Dynamic Adjustment
Dynamic performance parametrizable in accordance with:
- ROUGHING OPERATION
- FINISHING OPERATION
-

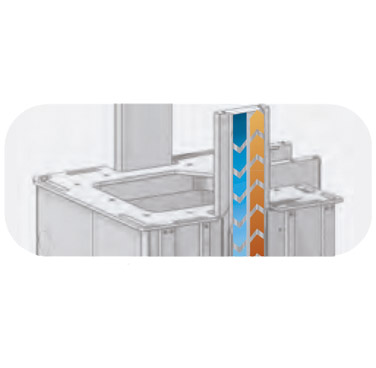

![Vertical Axis Temperature Control]()
![Vertical Axis Temperature Control]()
Vertical Axis Temperature Control
- High feed.
- High precision at tool tip.
- High roughing capacity.
- Geometric stability of ram.
Cooled friction guide in the ram.
![Vertical Axis Temperature Control]()
Vertical Axis Temperature Control

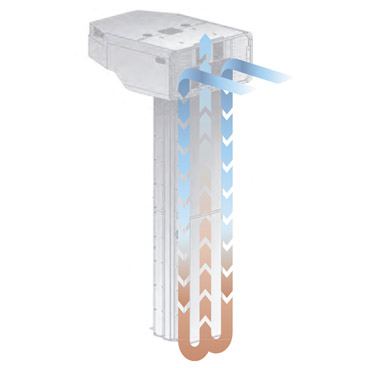

System of air recirculation through the ram.
.jpg)
.jpg)
.jpg)
.jpg)
1.jpg)
1.jpg)
1.jpg)
1.jpg)
.jpg)
.jpg)

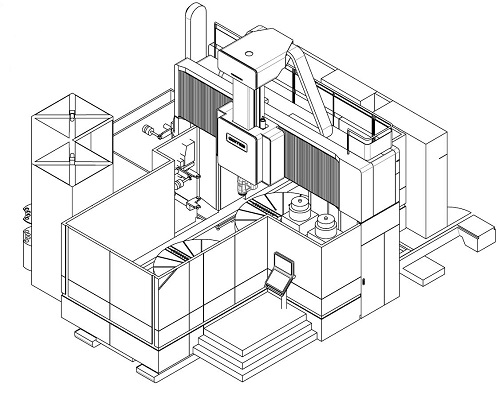

Technical specifications
| Table | |||||||
|---|---|---|---|---|---|---|---|
| Surface | mm | 3,500 - 8,500 x 2,000 - 2,500 | |||||
| Maximum load on the table | kg | 15,000 - 25,000 | |||||
| Traverses | |||||||
| Longitudinal | X mm | 3,000 - 8,000 | |||||
| Cross | Y mm | 3,000 / 3,750 / 4,250 | |||||
| Vertical | Z mm | 1,000 / 1,500 / 1,750 | |||||
| Working capacity | |||||||
| Distance between columns | Y mm | 2,500 / 3,250 / 3,750 | |||||
| Distance between head nose (UAD) and table top | Z mm | 1,140 / 1,390 / 1,640 / 1,890 / 2,140 | |||||
| Feeds | |||||||
| Maximum | X m/min | 30 | |||||
| Y m/min | 30 | ||||||
| Z m/min | 30 | ||||||
| Spindle specifications | |||||||
| Taper | ISO-50 Big Plus / HSK-100 | ||||||
| Programmable speed | rpm | 6,000 / 10,000 | |||||
| Maximum power | kW | 37 / 52 / 42 | |||||
| Maximum torque | Nm | 1,298 / 1,375 / 620 | |||||
Heads
UAD Technology
Universal and orthogonal indexing milling heads unique in the market. Patented technology allowing rotation every 0,02º.
5 axes Technology.
2 axes contouring head "Twist" type with built in electrospindle or spindle geared transmission.
Are you interested in our heads?
Standard and optional equipment
Standard equipment
- Automatic Universal Head
- Numerical control Heidenhain or Siemens (Operate HMI)
- Portable handwheel
- Air-conditioned electrical cabinet
- Linear guides in the X, Y axes
- Friction guide at Z axis
- Lamp in the working area
- Hydraulic and cooling group
- Linear scales in all axes
- Exterior coolant with adjustable lance nozzles
- Internal and external air flow
- Guarding
- Tele-service
- VIXION 4.0
Optional equipment
- Other heads
- Automatic head-changer
- Probes of measurement, tools and parts
- Automatic charger for 30, 40, 60, 120 tools
- Pick up station for 6, 8, 12 tools
- Air/Coolant cleaning gun
- Self cleaning filter
- Rotary tables
- Chip conveyors
- Full guarding (Only in some models)
- Coolant through the spindle
- Zero-point systems for rapid part change
- Integrated turning plate
- Automatic pallet changer
